BR series
50~225 kg

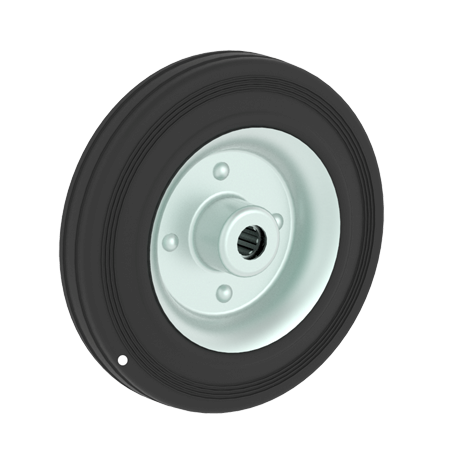

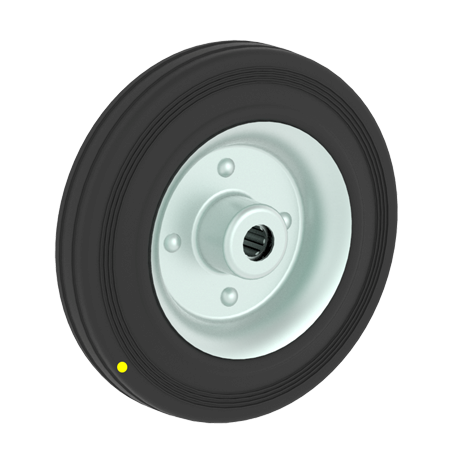

Solid rubber tyre with zinc plated pressed steel hub.
Rubber hardness 80° Shore A.
Temperature range - 20°C to + 80°C.
Solid rubber tyre with zinc plated pressed steel hub.
Rubber hardness 80° Shore A.
Temperature range - 20°C to + 80°C.
mm
|
mm
|
mm
|
mm
|
|
kg
|
|
| 80 | 25 | 40 | 12 |  |
50 | BR080RF |
| 80 | 25 | 45 | 12 | |
50 | BR081RF |
| 100 | 30 | 40 | 12 | |
70 | BR100RF |
| 100 | 30 | 45 | 12 | |
70 | BR101RF |
| 125 | 37.5 | 45 | 12 | |
100 | BR125RF |
| 125 | 37.5 | 45 | 15 | |
100 | BR125RG |
| 160 | 40 | 60 | 20 | |
135 | BR160RH |
| 160 | 40 | 60 | 19.05 | |
135 | BR160RQ |
| 200 | 50 | 60 | 20 | |
205 | BR200RH |
| 200 | 50 | 60 | 19.05 | |
205 | BR200RQ |
| 250 | 56 | 63 | 20 | |
225 | BR250RH |
| 250 | 56 | 63 | 19.05 | |
225 | BR250RQ |
| 250 | 56 | 67 | 20 | |
225 | BR251RH |
| 250 | 56 | 67 | 19.05 | |
225 | BR251RQ |
