ES series
250~1100 kg

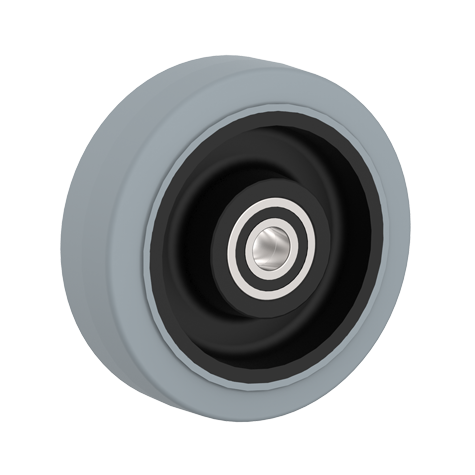

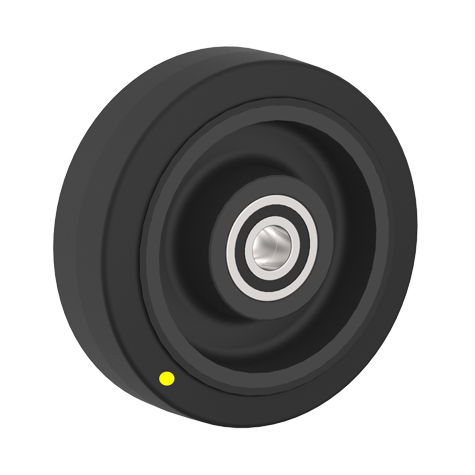

High quality elastic rubber 65° Shore A,
tread permanently bonded to cast iron centre.
Low rolling resistance,quiet operation.
PAHs Free and REACH conform.
Temperature range -20°C to + 80°C.
High quality elastic rubber 65° Shore A,
tread permanently bonded to cast iron centre.
Low rolling resistance,quiet operation.
PAHs Free and REACH conform.
Temperature range -20°C to + 80°C.
mm
|
mm
|
mm
|
mm
|
|
at 4km/h
|
at 10km/h
|
|
| 100 | 50 | 60 | 19.05 |  |
250 | - | ES100RQ |
| 125 | 50 | 60 | 19.05 | |
270 | - | ES125RQ |
| 125 | 50 | 60 | 20 |  |
300 | - | ES125DH |
| 150 | 50 | 60 | 19.05 | |
370 | - | ES150RQ |
| 150 | 50 | 60 | 20 | |
400 | 200 | ES150DH |
| 150 | 75 | 83 | 25 | |
500 | 250 | ES151DI |
| 160 | 50 | 60 | 20 | |
450 | 250 | ES160DH |
| 200 | 50 | 60 | 19.05 | |
470 | - | ES200RQ |
| 200 | 50 | 60 | 20 | |
600 | 350 | ES200DH |
| 200 | 75 | 83 | 25 | |
800 | 450 | ES201DI |
| 200 | 80 | 90 | 30 | |
850 | 470 | ES202DJ |
| 250 | 50 | 60 | 25 | |
700 | 400 | ES250DI |
| 250 | 75 | 83 | 25 | |
900 | 500 | ES251DI |
| 250 | 80 | 90 | 30 | |
1000 | 600 | ES252DJ |
| 300 | 75 | 83 | 25 | |
1000 | 600 | ES300DI |
| 300 | 75 | 83 | 30 | |
1000 | 600 | ES300DJ |
| 300 | 90 | 90 | 30 | |
1100 | 650 | ES301DJ |
| 300 | 90 | 90 | 35 | |
1100 | 650 | ES301DK |
