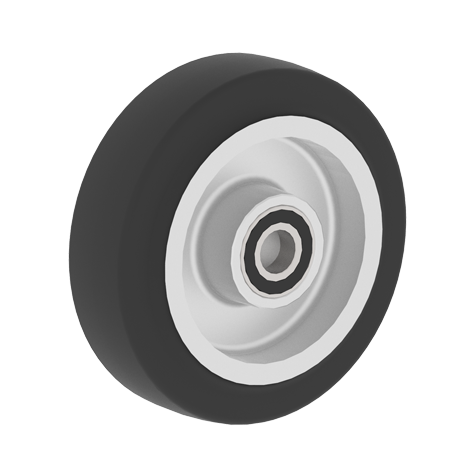

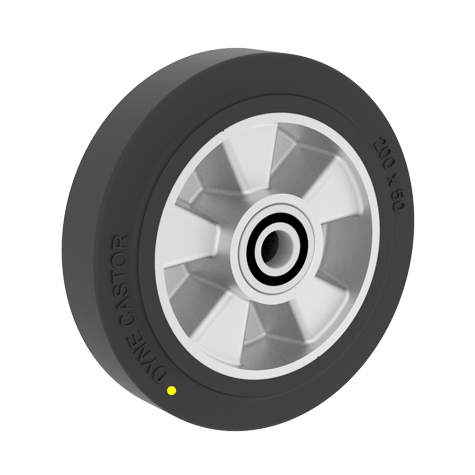

High quality elastic rubber 65° Shore A,
vulcanized and chemically bonded to aluminium wheel centre.
Low rolling resistance,high wear resistance,quiet & comfort operation.
PAHs Free and REACH conform.
Temperature range - 20°C to + 80°C.
mm
|
mm
|
mm
|
mm
|
|
at 4km/h
|
at 10km/h
|
|
| 75 | 32 | 29 | 10 |  |
125 | - | EA075DE |
| 80 | 40 | 40 | 15 | |
180 | - | EA080DG |
| 80 | 40 | 45 | 15 | |
180 | - | EA081DG |
| 100 | 40 | 40 | 15 |  |
200 | - | EA100DG |
| 100 | 40 | 45 | 15 |  |
200 | - | EA101DG |
| 100 | 50 | 60 | 15 |  |
250 | - | EA102DG |
| 125 | 40 | 45 | 15 |  |
250 | - | EA126DG |
| 125 | 50 | 60 | 20 | |
300 | 150 | EA125DH |
| 140 | 40 | 60 | 15 |  |
300 | 150 | EA140DG |
| 140 | 40 | 45 | 15 |  |
300 | 150 | EA141DG |
| 140 | 50 | 60 | 20 | |
350 | 175 | EA142DH |
| 150 | 40 | 50 | 15 | |
300 | 150 | EA150DG |
| 150 | 40 | 60 | 15 | |
300 | 150 | EA151DG |
| 150 | 50 | 60 | 20 | |
400 | 200 | EA152DH |
| 160 | 40 | 60 | 15 |  |
300 | 150 | EA161DG |
| 160 | 50 | 60 | 20 |  |
400 | 200 | EA160DH |
| 180 | 50 | 60 | 20 | |
450 | 220 | EA180DH |
| 200 | 50 | 60 | 20 | |
500 | 250 | EA200DH |
| 250 | 50 | 60 | 20 | |
650 | 320 | EA250DH |
| 250 | 50 | 60 | 25 | |
650 | 320 | EA250DI |
