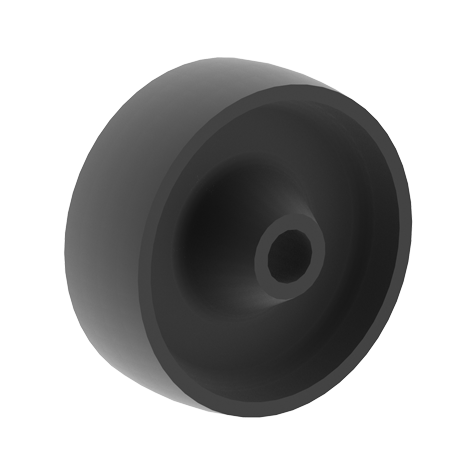

Made by casting of high quality grey iron,machine finished.
Stands good load,good wear resistance,resists metal chips and high temp environment.
Grease fitting on sizes above 80mm.
Temperature range -100°C to + 300°C.
mm
|
mm
|
mm
|
mm
|
|
kg
|
|
| 25 | 12 | 13 | 4.5 |  |
20 | CI025PA |
| 32 | 14 | 16 | 5 | |
30 | CI032PB |
| 40 | 17 | 20 | 6.35 | |
40 | CI040PS |
| 50 | 20 | 24 | 6.35 | |
60 | CI050PS |
| 63 | 25 | 31 | 8 | |
70 | CI064PD |
| 63 | 25 | 35 | 10 | |
70 | CI065PE |
| 75 | 25 | 31 | 8 | |
80 | CI076PD |
| 75 | 32 | 40 | 12 | |
100 | CI077PF |
| 75 | 32 | 40 | 12.7 | |
100 | CI077PO |
| 80 | 32 | 40 | 12 | |
130 | CI080PF |
| 80 | 32 | 40 | 12.7 | |
130 | CI080PO |
| 100 | 35 | 40 | 12 | |
240 | CI100PF |
| 100 | 35 | 40 | 12.7 | |
240 | CI100PO |
| 100 | 38 | 49 | 12 | |
260 | CI101PF |
| 100 | 38 | 49 | 12.7 | |
260 | CI101PO |
| 100 | 38 | 49 | 15 | |
260 | CI101PG |
| 100 | 38 | 49 | 15.88 | |
260 | CI101PP |
| 100 | 50 | 60 | 19.05 | |
300 | CI103PQ |
| 100 | 50 | 60 | 19.05 |  |
300 | CI103RQ |
| 125 | 40 | 45 | 15 | |
300 | CI125PG |
| 125 | 40 | 49 | 15 | |
300 | CI126PG |
| 125 | 40 | 49 | 15.88 | |
300 | CI126PP |
| 125 | 50 | 60 | 19.05 | |
360 | CI127PQ |
| 125 | 50 | 60 | 19.05 | |
360 | CI127RQ |
| 150 | 50 | 60 | 20 | |
500 | CI150PH |
| 150 | 50 | 60 | 19.05 | |
500 | CI150PQ |
| 150 | 50 | 60 | 19.05 | |
500 | CI150RQ |
| 200 | 50 | 60 | 20 | |
600 | CI200PH |
| 200 | 50 | 60 | 19.05 | |
600 | CI200PQ |
| 200 | 50 | 60 | 19.05 |  |
600 | CI200RQ |
