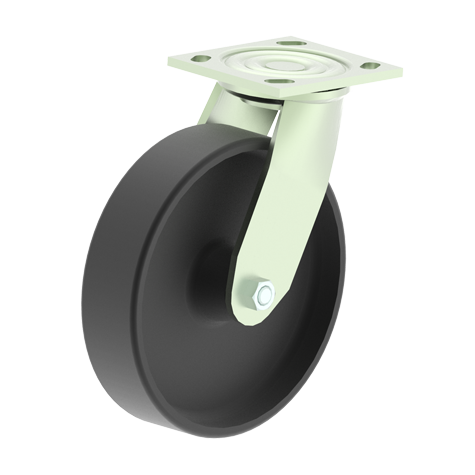

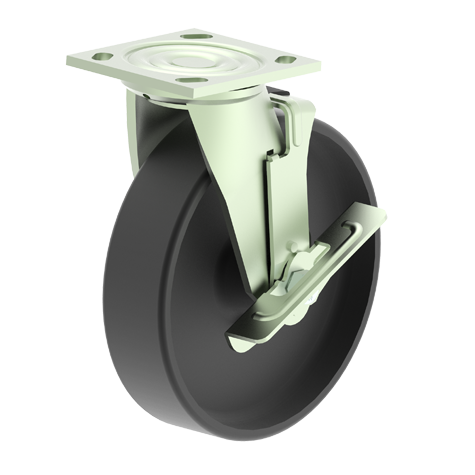

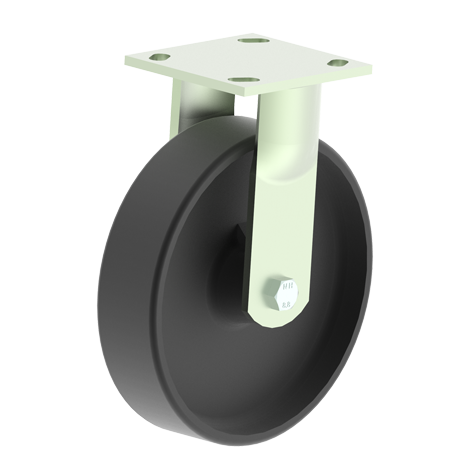

040BK
Bracket made of thick welded steel,zinc plated yellow passivated.
Case hardened double ballraces with large kingpin.
Swivel head with grease nipple.
CI Cast lron Wheel
Made by casting of high quality grey iron,machine finished.
Stands good load,good wear resistance,resists metal chips and high temp environment.
Grease fitting on sizes above 80mm.
Temperature range -100°C to + 300°C.
mm
|
mm
|
mm
|
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
|
|
| 100 | 50 | 19.05 |  |
115x102 | 92x67~76x76 | 11 | 143 | 40 | 300 | 040CI103PQ | 041CI103PQ | |
| 100 | 50 | 19.05 |  |
115x102 | 92x67~76x76 | 11 | 143 | 40 | 300 | 040CI103RQ | 041CI103RQ | |
| 125 | 50 | 19.05 |  |
115x102 | 92x67~76x76 | 11 | 165 | 40 | 360 | 040CI127PQ | 041CI127PQ | |
| 125 | 50 | 19.05 |  |
115x102 | 92x67~76x76 | 11 | 165 | 40 | 360 | 040CI127RQ | 041CI127RQ | |
| 150 | 50 | 19.05 |  |
115x102 | 92x67~76x76 | 11 | 190 | 51 | 500 | 040CI150PQ | 041CI150PQ | |
| 150 | 50 | 19.05 |  |
115x102 | 92x67~76x76 | 11 | 190 | 51 | 500 | 040CI150RQ | 041CI150RQ | |
| 200 | 50 | 19.05 |  |
115x102 | 92x67~76x76 | 11 | 240 | 54 | 500 | 040CI200PQ | 041CI200PQ | |
| 200 | 50 | 19.05 |  |
115x102 | 92x67~76x76 | 11 | 240 | 54 | 500 | 040CI200RQ | 041CI200RQ |
